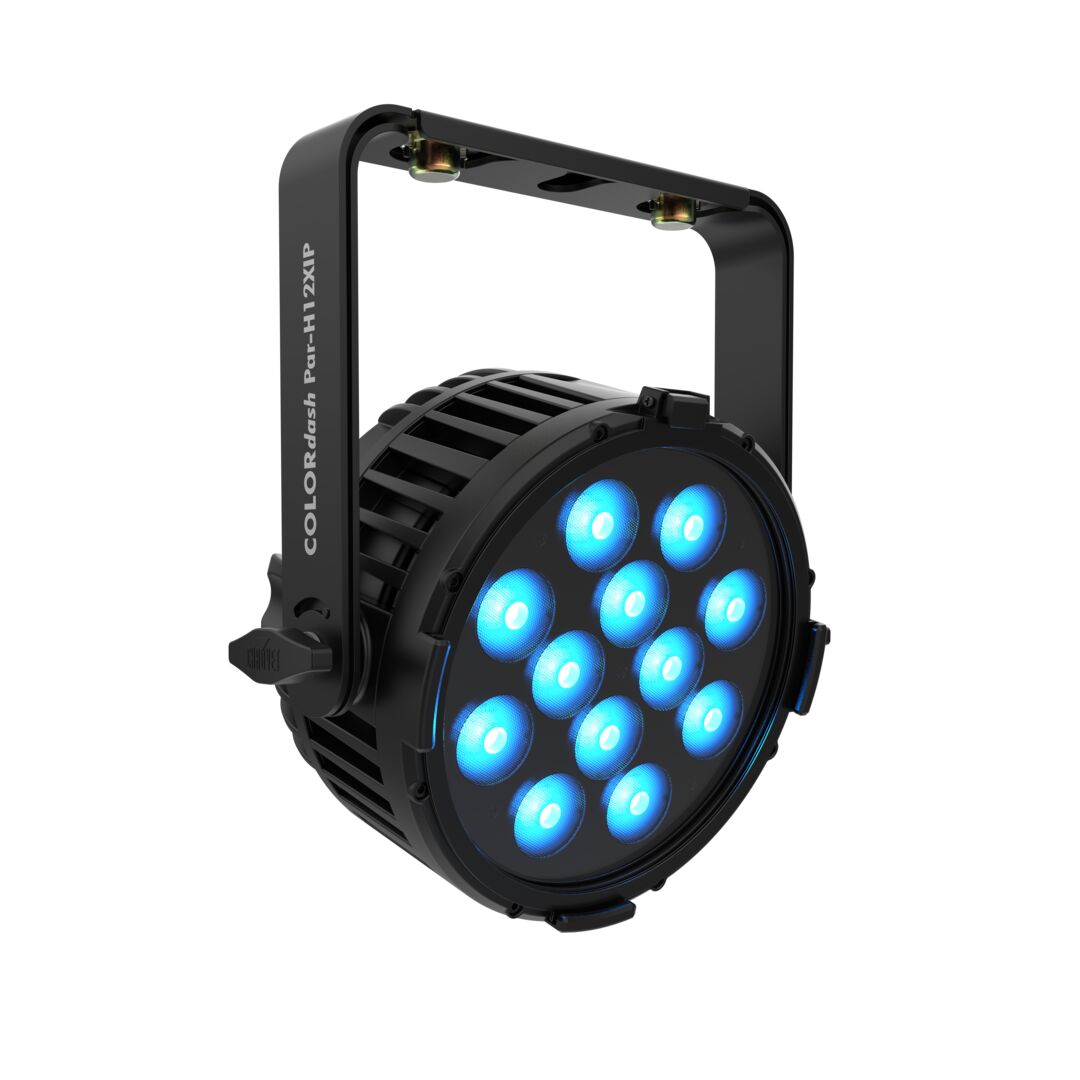

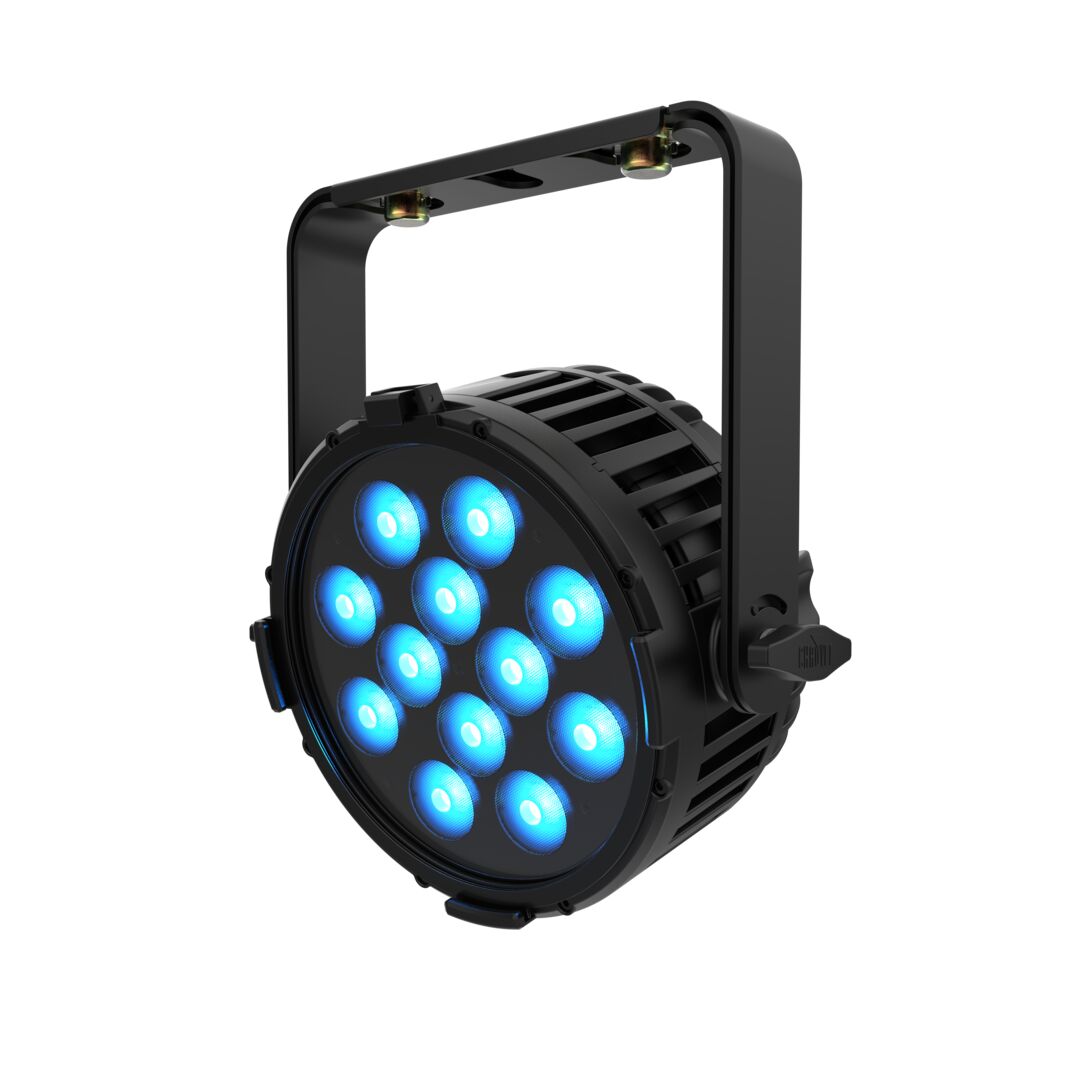

COLORdash Par-Hex 12XIP

Optical

• Light Source 12 LEDs (hex-color RGBAW+UV) 120 W, (512 mA), 50,000 hours life expectancy
• Color Temperature (range) 2800 to 10,000 K
• Color Temperature (at full) 11,008 K
• Beam Angle 22.2°
• Field Angle 36.9°
• Lumens 4,532
• Illuminance (total) 1,052 lux @ 5 m
• Selectable PWM 600, 1.2k, 2k, 4k, 6k, 25k Hz

Dynamic Effects

• Dimmer Electronic
• Shutter/Strobe Electronic
• Strobe Rate 0 to 20 Hz
• Standalone Color Mixing Yes
• Color Temperature Presets Yes
• Dim Modes 4
• Built-in Automated Programs Yes

Control

• Control Protocol DMX, RDM
• DMX Channels 6ch ,8ch ,9ch ,13ch, or 14ch
• Modes/Personalities 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch)

Connections

• Power Connection Edison (Local) plug to Seetronic Powercon IP65
• Power Output Seetronic Powercon IP65
• Data Connectors 3 and 5-pin IP65 XLR
• Cable Length (power) 5 ft (1.5 m)

Construction/Physical

• Dimensions 9.1 x 12 x 9.8 in (232 x 305.4 x 247.9 mm)
• Weight 11.8 lbs (5.4 kg)
• Exterior Color Black
• Housing Material Aluminum alloy, Aluminum die-cast
• Accessory Holder/Gel Frame Size 8.75 in (222 mm)

Electrical

• Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking 11 units @ 120 V; 19 units @ 208 V; 21 units @ 230 V
• Power and Current 126 W, 1.041 A @ 120 V, 60 Hz
• Power and Current 123 W, 0.604 A @ 208 V, 60 Hz
• Power and Current 123 W, 0.547 A @ 230 V, 50 Hz
